Piston Air Compressor Belts
Reciprocating air compressors, also known as piston air
compressors, function by using a series of one-way valves to
introduce air into a chamber. Constant motion provided by a series
of pistons then compresses the air, a process that is referred to
as positive displacement. A typical reciprocating air compressor is
similar to a small internal combustion engine. In addition to the
pistons and connecting rods, it also includes a crankshaft,
cylinder and valve head. The crankshaft is driven by either an
electrical motor or gas engine.
Features
Technical Specifications
| Model | XW-0.9/8 |
| Motor Power | 7.5KW |
| Rated Voltage | 380V |
| Displacement | 0.9m3/min |
| Rated Pressure | 0.8Mpa |
| Cylinder Dia xQty | 90cmx 3 |
| Gas Tank Capacity | 180L |
| Overall Size | 148x56x100cm |
| Net Weight | 155kg |
| Rotate Speed | 850rpm |

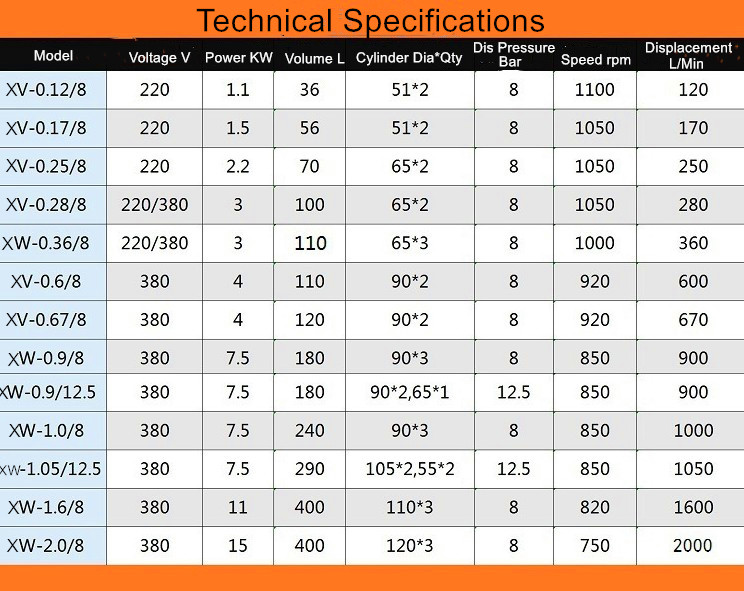

More Models for option
Detailed Pictures
|
|
