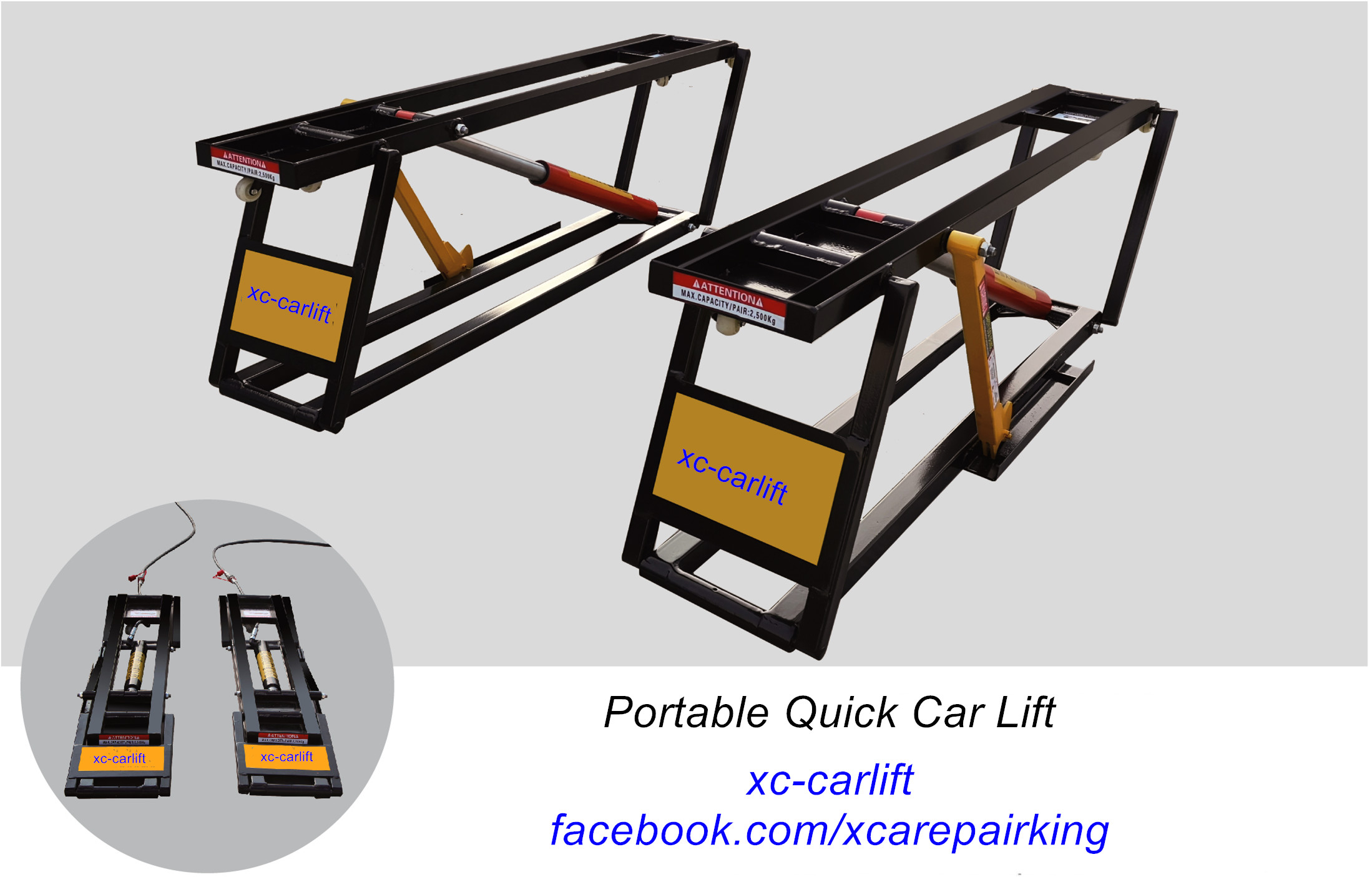

Quick Jack Lift Portable Hydraulic Car Lift
Portable Quick Lift is one convenient and portable electric hydraulic car lifting system, which can lift a vehicle by directly using itself power supply.
Get rid of the dependence on power supply and venues in road rescue, door-to-door service, car wash and beauty industry.
This product is light and portable, easy to operate, high reliability, waterproof and dustproof.
All the parts including packaging box, can be loaded by a van. Benefiting from its convenient roller design, it is can be lifted and towed with one hand.
Features

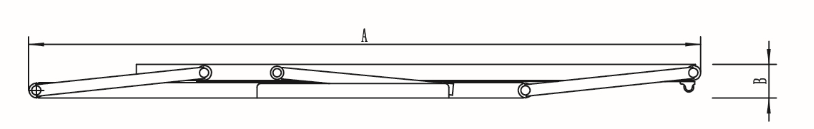

Technical Drawing
Technical Parameters
| Specifications | XP2500 | XP3500 |
| Frame Spread Length (A) | 1746mm | 1746mm |
| Single Frame Length (C) | 1468mm | 1468mm |
| Single Frame Width | 315mm | 315mm |
| Single Frame Weight | 36kg | 42kg |
| Mini Height (B) | 80mm | 88mm |
| Max Lifting Height (D) | 450mm | 450mm |
| Max Lifting Capacity | 2500kg | 3500kg |
| Rise/Fall Time | 20-30s | 20-30s |
| Power Unit | 20kg | 20kg |
| Oil Tank Capacity | 4L | 4L |
Accesssories
Extended Frame: is used to increase the longitudinal stability when the lifting wheelbase is greater than 3.0m and the lifting height can be slightly increased.
Increased Pad: is used to increase the lifting height of vehicles with high chassis such as SUV. After use, the lifting height can be increased from 460mm to 560mm

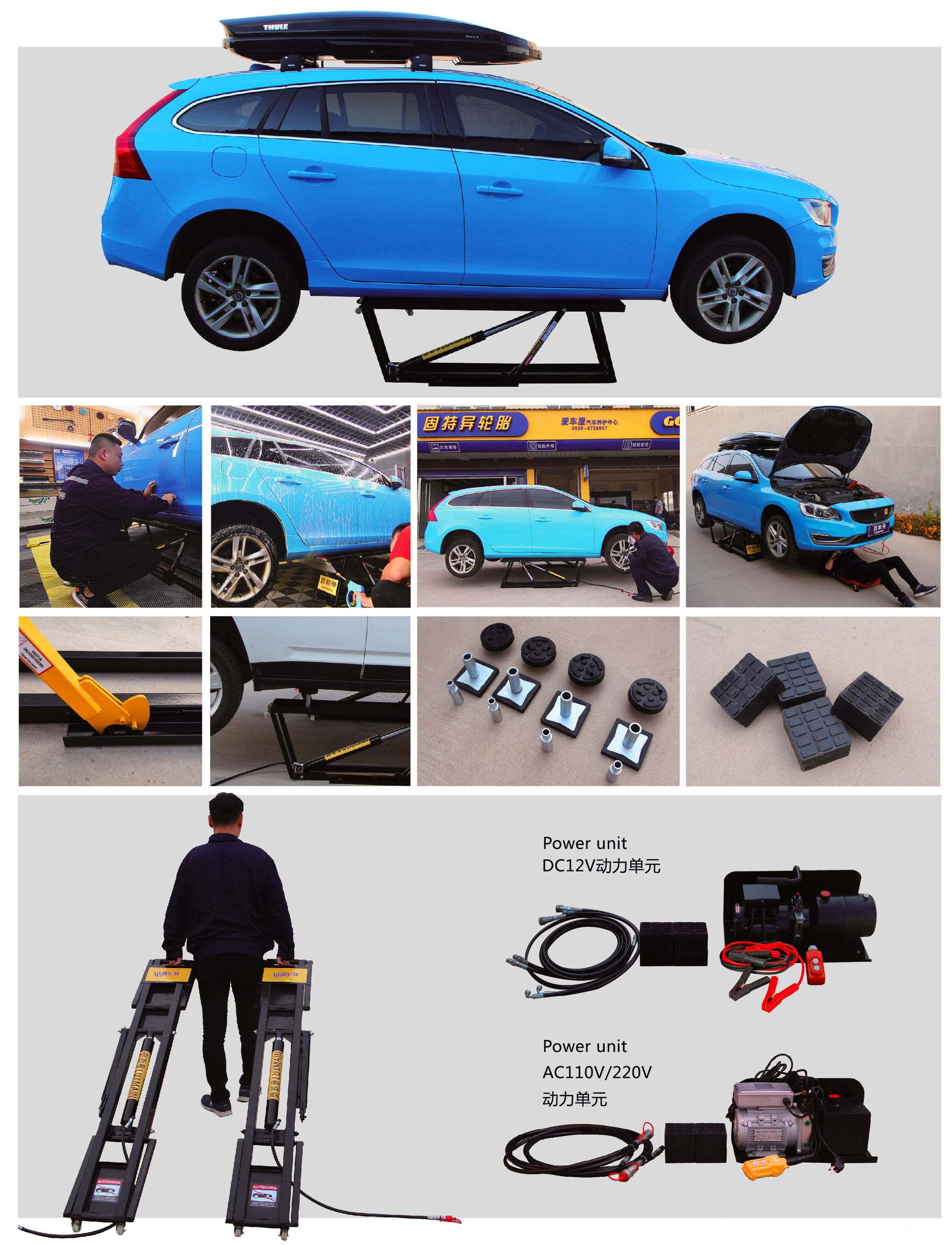

Detailed Pictures
Packaging
|
|
