Overall Solutions for Automobile "Repair & Parking"
10 Years
| Ask Lasest Price | |
| Brand Name : | XCAREPAIRKING |
| Model Number : | XFP4000F |
| Certification : | CE |
| Price : | $5600/set |
| Payment Terms : | T/T, Western Union, MoneyGram, Cash |
| Supply Ability : | 450 sets per month |
| Delivery Time : | 10-25 working days |

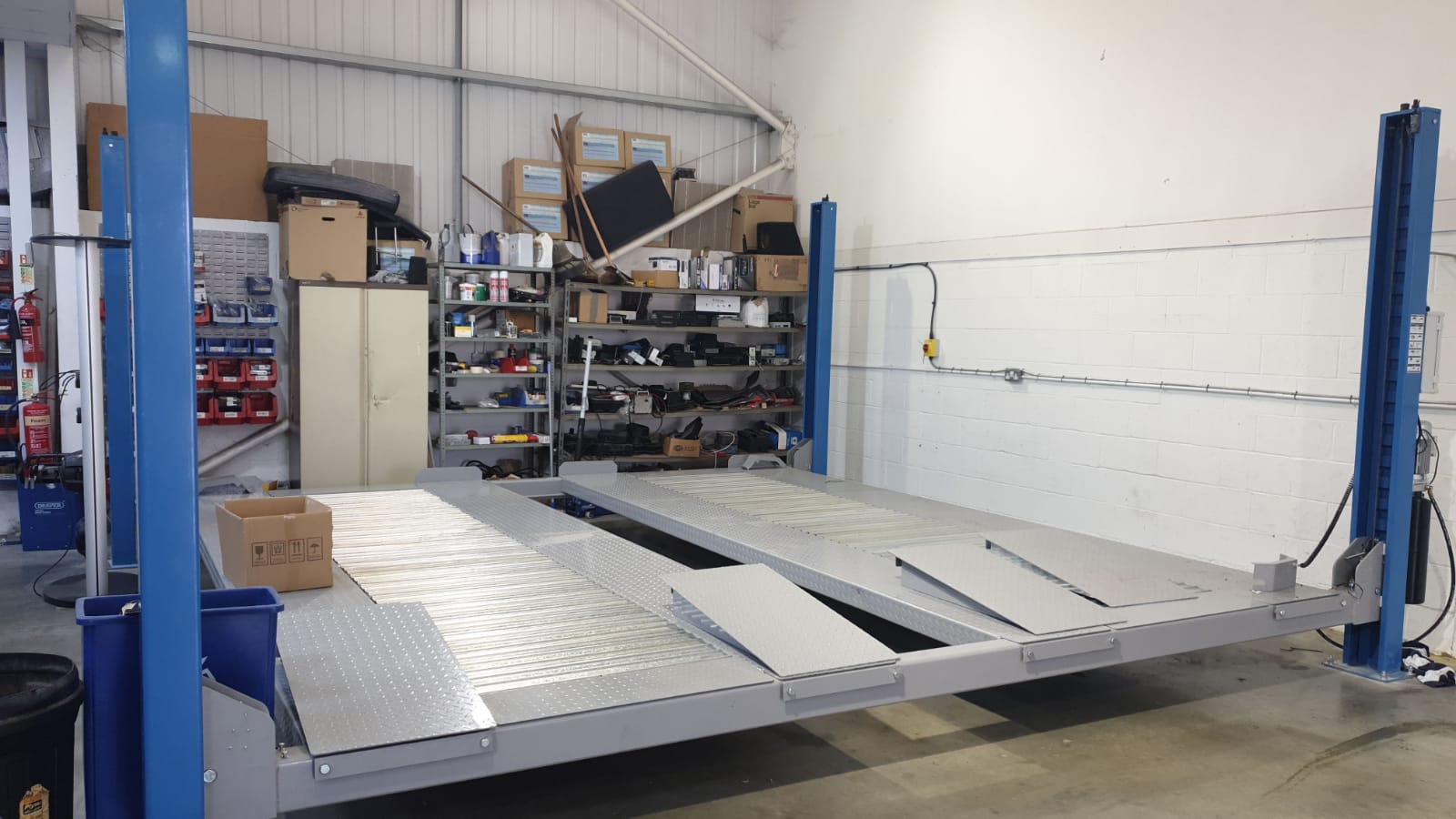

4Ton /2000mm Four Post Car Parking Lift for 4 cars
Features
1. Offering space for 4 cars parking
2. Customized according to layout, Space & cost saving due to its
compact design.
3. Double safety locks: first are one piece adjustable safety lock
ladder and the other will be activated automatically in case of
steel wire rupture.
4. Hydraulic driven and steel rope lifting system.
5. Electric operation with operation panel.
6. Automatic locking system with electric lock release.
7. The whole sliding framework synchronous balance system.
8. Suitable for multi-vehicle parking & storage.
9. Steel parts are sandblasted then anti-corrosion primer painted
and top finish color coated.
Technical Drawings
Technical Parameters
| Model | XFP4000F |
| Lifting height (mm) | 2000 |
| Lifting capacity (kg) | 4000 in total |
| Total length | 5000mm (5794mm plus ramp) |
| Total height | 2583mm |
| Total width | 5330mm |
| Single platform width | 1954mm |
| Operation type | Electric panel |
| Lock release type | electric lock release |
| Safety devices | Double safety locks: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture |
| Driven mode | Hydraulic driven |
| Middle in the runway | Galvanized wave plates |
| space for cars | 4 cars |
| Motor Power Supply | 2.2kw/220V/380V, 1ph/3ph, 50Hz or 60H |
More Models for Option
More Models for Optional
|
|
