Underground Auto Parking Lift Pit Type Car Parking Lift

Features

• Simplicity of operation, economic and practical design,1 parking space for 3 cars
• Pit type stacker, can be used in household or office building parking lot.
• Sharing post design, space saving, economic and more steady.
• No steel structure above ground, simple and graceful
• The upper and lower space are fixed together, normally, the system lower to the pit, you can park car on upper space, directly or rise the system to park the car on lower space.
• Multiple safety protection device.
• Optional hydraulic oil cylinder or motor & chain driven mode.
• Wave plate or diamond plate are optional, you can choose hot galvanizing, electroplating or powder spray.
• Mold machining through the whole process.
• Pass 120% capacity dynamic load text and 150% static load test.
• Italian oil seal to make sure no oil leakage.
• Optional ultrared rays alarm device, in case of unguarded entrance.

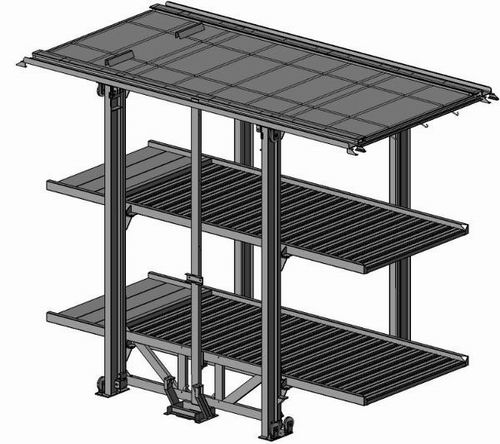

Technical Drawings

Technical Parameters

• The standard depth of pit is 4.4m, and the load of each layer is 2 tons
• The parking height of floor B1/B2 is 1.8m, the width of underground vehicle is 2.1m, and the vehicle is detected for excessive length to prevent falling;
• Overall size: 5400*2850*4400mm;
• vehicles on floor B1/B2 warm in winter and cool in summer, anti-theft and anti-rain&snow, floor 1 and floor B1 vehicles free access, intelligent and practical;
• Meet CE standard voltage system, key operating system, voltage: 380V, the foundation shall be constructed according to the requirements of the manufacturer;
• Motor power: 5.5kw;
• Rise time approx 50s, Fall time approx 35s;
• Process: shot blasting spray/non-spray paint treatment;
• Space height requirement: 5.6m
