    3 Storeys Puzzle Car Parking System Three Floors Vertical Horizontal Smart Auto Parking System

    Ask Lasest Price
    Brand Name : XCAREPAIRKING
    Model Number : XC-PSH3L7
    Certification : CE
    Price : $2800x7
    Payment Terms : T/T, L/C
    Supply Ability : 250 sets per month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    3 Storeys Puzzle Car Parking System Three Floors Vertical Horizontal Smart Auto Parking System

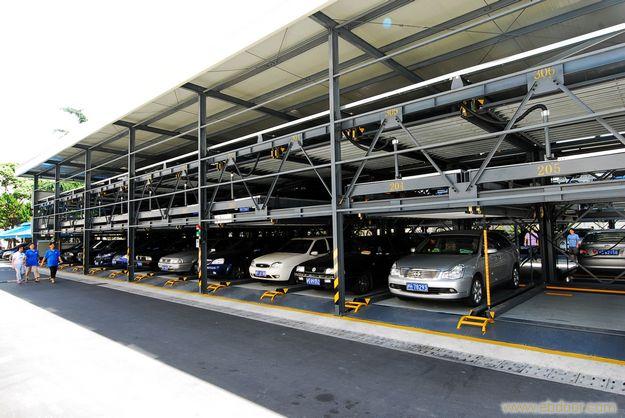

    3 storeys puzzle car parking system


    PSH car parking system

    namely cars can move up and down, also can move left and right.

    Simple operation, low failure rate.


    Working principles

    Each carport has one car board, the car board(s) intended to park and fetch, cars can be moved to ground through up-down, and left-right movement.

    Then driver(s) enter into the garage, park and fetch the cars, complete the access process.


    Operation principles

    -Adopting car board up-down or left-right to park and fetch cars.

    -Each carport has car board, the top layer board only do up-down movement, ground layer only do left-right movement.

    -There is one vacancy in ground (middle)layer, the vacancy can be shifted with the left-right movement of car board,

    make the upper layer car board against the vacancy drops to ground, thus make the car drive into or out the carport.

    -For ground board, cars can drive into or out the carport directly.

    Features

    1. Various modes, the scale can be big or small, strong adaptability for the site, saving the land& space effectively.

    2. Can be used for garage construction of office, residential area and adding garage for existing basement.

    3. low construction cost, safe and reliable to use, low maintenance cost; can be modularized fit for different terrains and space.

    4. PLC intelligent control, can meet the needs of temporary, short, medium, long-term users.

    5. Simple operation, fast accessing.


    Technical Drawings


    Technical Parameters

    CodeSmall Vehicles (X)Medium Vehicles(Z)Large Vehicles(D)Oversize vehicles(T)
    Proper vehicles SpecsL/mm4400470050005300
    W/mm1750180018501900
    H/mm1450145015501550

    Garage

    Capacity

    A/mm7350735075007800
    B/mm5400570060006300
    C/mm4650465047504750
    D/mm5200520053005300
    E/mm2300
    F/mm1600160017001700
    G/mm2450245025002600
    H/mm1950195020002100

    Remarks:

    A means total length of the parking equipment

    B means total width of the parking equipment

    C means total height of the parking equipment.

    D equals the height of parking equipment plus the height when car(s) park in the top layer.

    E means the height of the ground floor.

    F means the floor height except ground floor.

    G means row width.

    H means car board width.


    Technical Requirements

    1. Lighting: Environment of Mechanical parking system should have good lighting and emergency lighting.

    2.Drainage: In order to guarantee not have waterlogging inside and under the parking system, we should set up gutterway and other drainage facilities.

    3. The design of column grid of indoor parking system construction should meet the dimension requirement of parking equipment, and make full use of the space.
